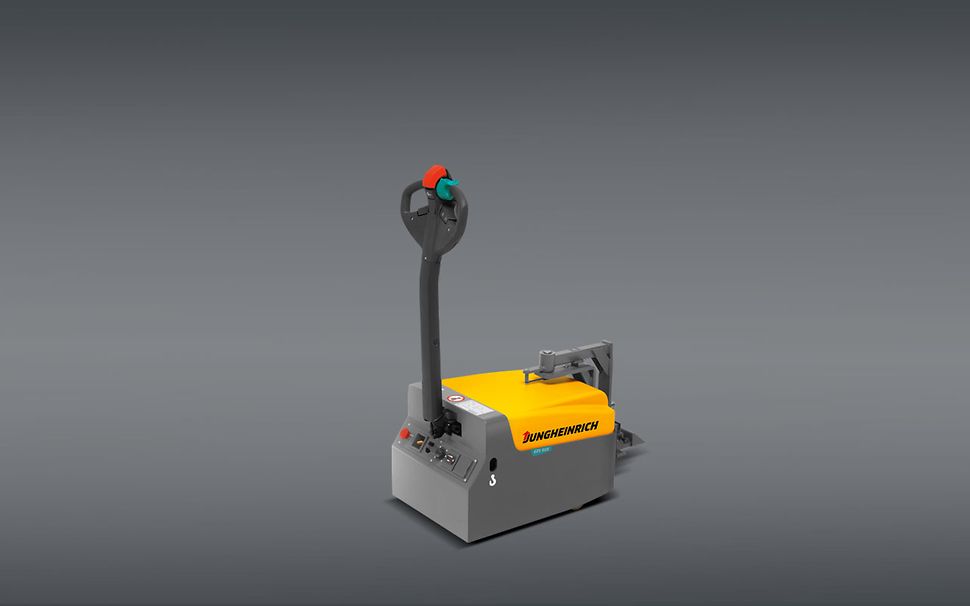

The EZS 010 is a versatile, efficient mini tow tractor for towing trailers of up to 1,000 kg. It is ideal for the transport of loads in restricted areas. With the mini tow tractor, trailers are moved quickly, economically and easily. They are designed for a wide range of applications, such as wholesale furniture , industry, supermarkets or hospitals.

Anywhere where smaller loads must be transported over short distances, the EZS 010 is the clear choice with compelling advantages:

• Wide variety of coupling systems for many different trailer types.
• Clearly visible, easily accessible coupling.
• 24-volt 3-phase AC drive motor.
• Ergonomic safety tiller arm.
• Compact, user-friendly design.
• Turns on the spot.
• Drive tyre protected by chassis.
• A choice of three travel programs.

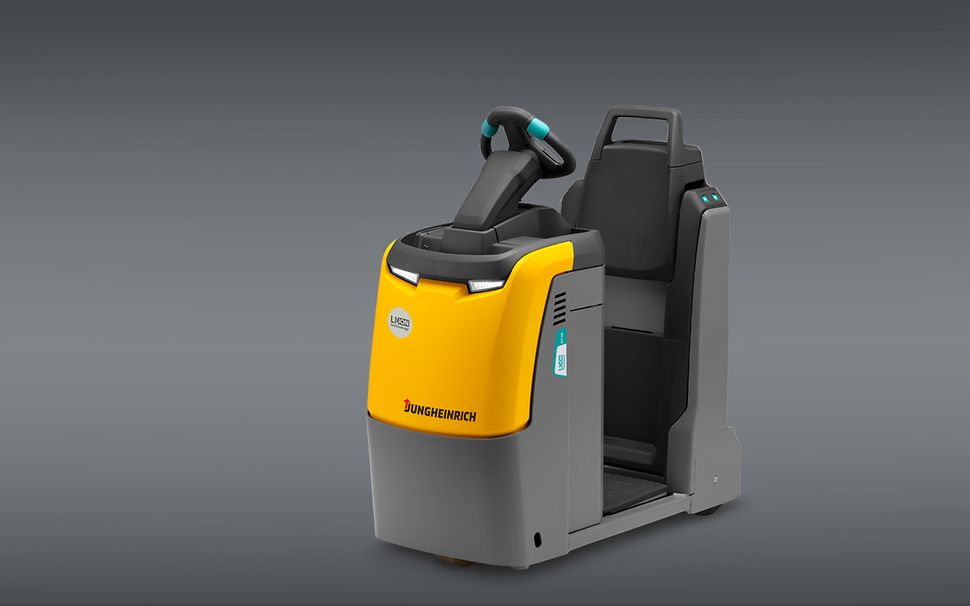

The EZS 130 is a particularly compact tow tractor, ideal for pulling trailers up to 3,000 kg. A narrow width of just 600 mm makes the EZS the ideal truck for particularly narrow and confined spaces. Attaching several trailers allows the loading areas to be varied. This contributes towards flexible and economical material handling.

The coupling is clearly visible from any position and is also easily accessible. The semi-automatic remote coupling release (optional) allows for the coupling/releasing of trailers without the operator having to leave the platform. This saves both time and costs. A further advantage: The truck is available with several different couplings and can thus be adapted to any type of trailer.

The 24 V drive motor with its 3-phase AC technology ensures high performance. The advantages: Powerful acceleration and high maximum speed. Combined with significant energy savings, extended operating times and minimised maintenance costs (due to omission of carbon brushes). This is due to the optimised efficiency, the matched relationship between the drive motor and drive electronic control as well as regenerative braking.

The main ergonomic advantages are the low stand-on platform for frequent mounting and dismounting and the short distance from operator position to load. The EZS also operates effortlessly in confined spaces. Its turning radius is so small that the operator will feel that he is turning on the spot.

The jetPILOT steering wheel, supportive backrest and automatic curveCONTROL speed reduction, as well as the load wheels with CSE tyres provide comfort and safety, especially on corners.

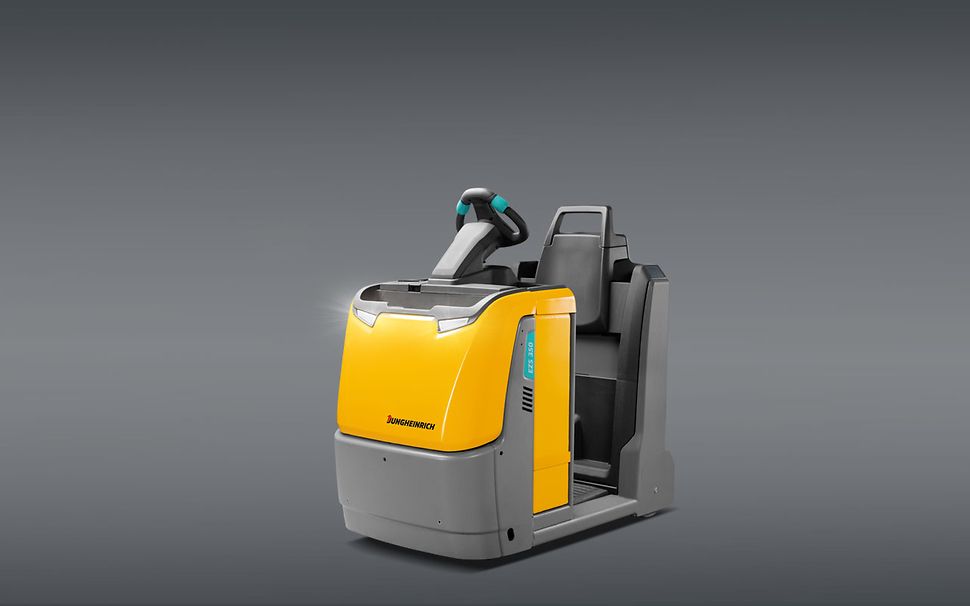

Robust, versatile and economic – these are the advantages of our EZS 350 electric tow tractor. These high-performance tow tractors are suitable for any application in tow trains with tow loads up to 5,000 kg.

In addition to outstanding ride comfort and safety, our EZS 350 tow tractor also offers increased performance with low energy consumption:Optimised handling even in difficult situations.curveCONTROL steer-angle-dependent assistance system for stable cornering.Easily accessible coupling: From the operator position, the coupling is clearly visible and easy to reach. Different couplings are available.Generous and comfortable operator position: The low stand-on platform makes it easy to climb aboard.Automatic parking brake with anti roll-back function: When the truck comes to a halt, the tow tractor and trailer are automatically secured.Powerful and efficient 3-phase AC drive motor provides strong acceleration and high top speed.Regenerative braking: The braking energy is fed back into the battery, thereby extending its operating period.The optional LED lighting is environmentally friendly and not sensitive to vibrations.Fast battery replacement: The battery can either be lifted out by crane or optionally replaced from the side.The comfort features guarantee specific adaptation to all applications.

The jetPILOT multifunctional steering wheel also features:Intuitive and comfortable operation, similar to a car, plus a safe and secure grip.Reduced strain on neck and spinal column when cornering.One-handed operation and automatic return of the steering wheel to straight line travel.Adjustable to individual body size.

Sophisticated ergonomics and technology in the form of our EZS 350 ensure safe, effortless working combined with cost and energy efficiency.

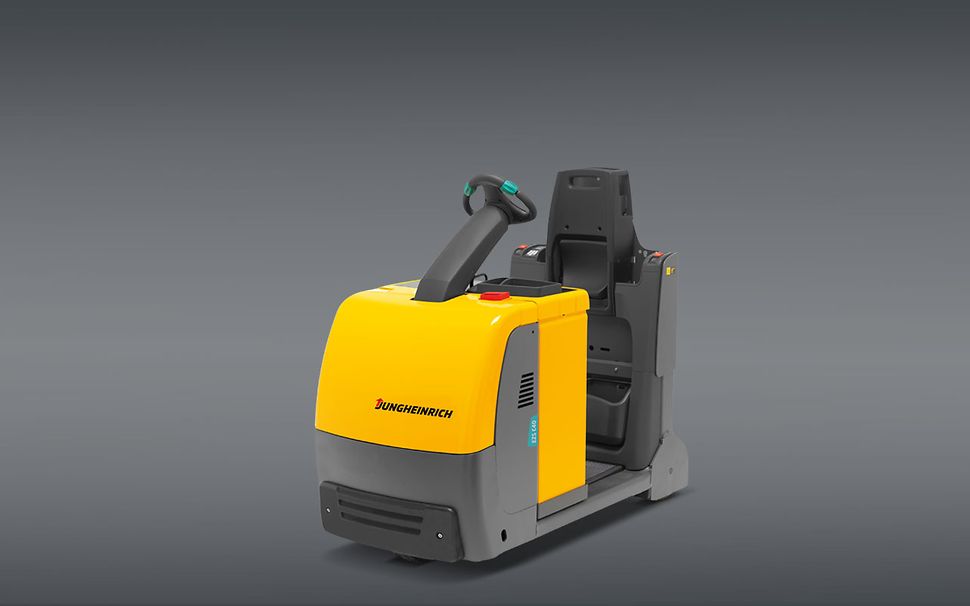

The Jungheinrich EZS C40 is a versatile, economic tow tractor for pulling trailers weighing up to 4000 kg. Attaching several trailers allows the load surfaces to be infinitely variable. This contributes to flexible material turnover. With its superelastic drive wheel (SE) the EZS C40 offers optimum traction on smooth floors as well as slightly uneven ground, such as when operating outdoors. At the same time the solid tyre absorbs minor impacts, e.g. from bumpy ground and dock levellers.

With its increased ground clearance, the truck is ideally suited for travelling on uneven surfaces, even outdoors. The coupling is clearly visible from any position and is also easily accessible. This saves both time and costs.

The tow tractor can be equipped with a wide range of couplings, making it adaptable to practically any type of trailer.

The 24-V drive motor with its 3-phase AC technology ensures high performance. The advantages are powerful acceleration and high top speed, with significant energy savings, extended operating times and low maintenance. This is due to the improved efficiency, the optimised co-ordination between the drive motor and controller as well as regenerative braking.

High productivity features include the low stand-on platform and the short distance from the operator position to the load. The EZS works well in tight areas. Its turning radius is so small that the operator will feel that they are turning on the spot. The jetPILOT steering wheel, supportive backrest and curveCONTROL automatic speed reduction, all provide comfortable operation when cornering.

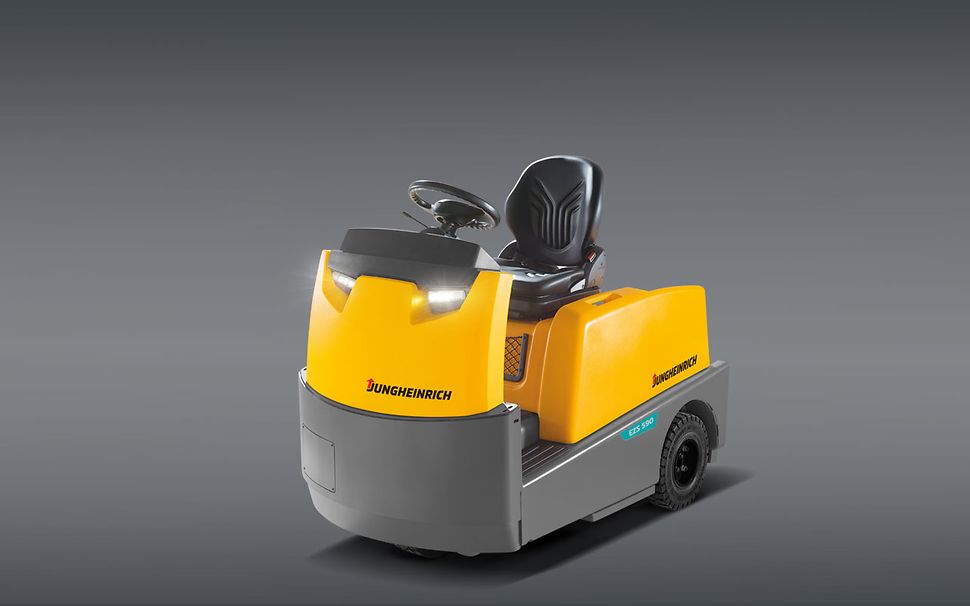

Robust, versatile and economical – these are the advantages offered by our EZS 570, 580, 590 and 5100 electric tow tractors. When used in warehouses or outside –

these high-performance tow tractors with tow load capacities of up to 10,000 kg are suitable for any application.

In addition to outstanding ride comfort and safety, the Series 5 tow tractors also offer increased performance with low energy consumption:

• New comfort suspension: The fully cushioned suspension with springs and shock absorbers on all wheels protects the operator’s back as well as the truck.
• Robust design: The powerful steel frame and hard-wearing moulded parts last for the lifetime of a tow tractor in daily operation.
• LED lighting: The optional lighting is environmentally friendly and not sensitive to vibrations.
• Easily accessible coupling: From a seated position, the coupling is clearly visible and easy to reach. Different couplings are available.
• Generous and comfortable operator position: The low stand-on platform makes it easy to climb aboard, the spacious foot-well provides ample legroom and the steering wheel, travel direction switch and indicator lever are all easy to reach, making it an extremely ergonomic unit.
• Automatic parking brake with roll-back protection. When the truck comes to a halt, the tow tractor and trailer are automatically secured.
• 48-V 3-phase AC motor provides strong acceleration and a high top speed.
• Regenerative braking: The braking energy is fed back into the battery, thereby extending its operating period.
• Fast battery replacement: The battery can either be lifted out by crane or optionally replaced from the side.
• Economic use of pool batteries: Use of the 625-Ah battery, which is also used in the 48-V class forward-loading trucks, in the XL version.

Conclusion: Sophisticated ergonomics and technology in the form of our EZS Series 5 ensure gentle and safe working with a high degree of cost and energy efficiency.

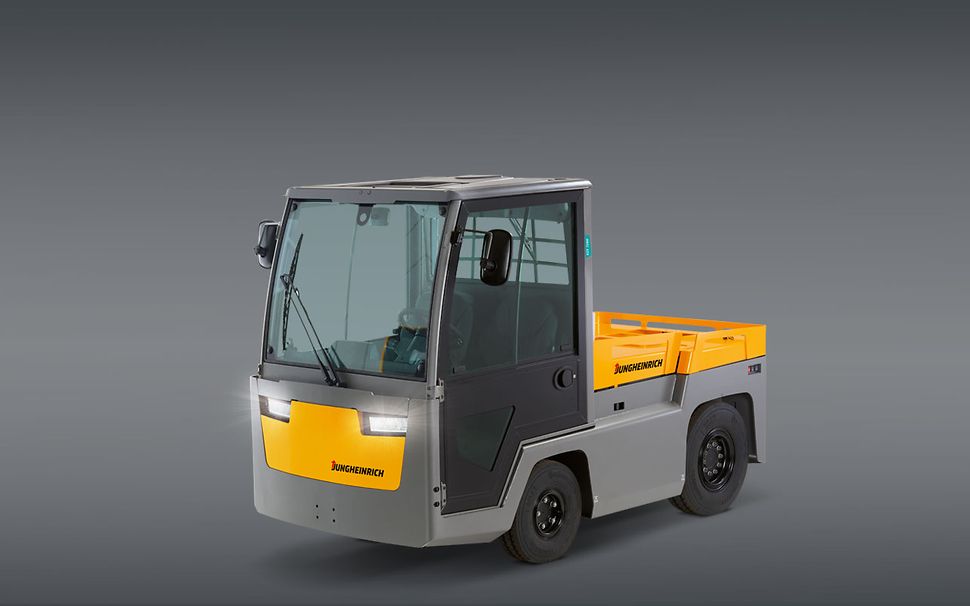

The EZS 7280 sit-on tow tractor is ideal for transporting heavy loads across the airport apron or the premises of industrial companies. With its maximum pulling performance of 28 t, combined with the strong torque and good braking, it transports loads easily and safely. Its particular strength is the transport of heavy loads on ramps. Stopping and starting on the ramp is always problem free thanks to the automatic parking brake and hill start assistant.

Thanks to the compact dimensions and the large steering lock of the front wheels, even the narrowest spaces on the site can safely be mastered. The 2×10 kW individually controlled drive motors are not only key for drive capacity, they also support the manoeuvrability of the truck, especially at low speeds.

The tow tractor is particularly robust for frequent outdoor use. The cathodic-dip coating of the base frame also protects the truck against the most adverse weather conditions.

Various driver cabs are available for the operator in such situations, with optional folding or sliding door, maximising protection throughout the working day.

An automotive-style pedal configuration and an adjustable steering wheel position enable every operator to move the EZS 7280 safely within a very short time.

Batteries with a maximum capacity of up to 930 Ah deliver sufficient energy for all tasks. Thanks to its rapid and boost charging capability, the need for a battery replacement can be completely avoided with a 500 Ah lithium-ion battery.

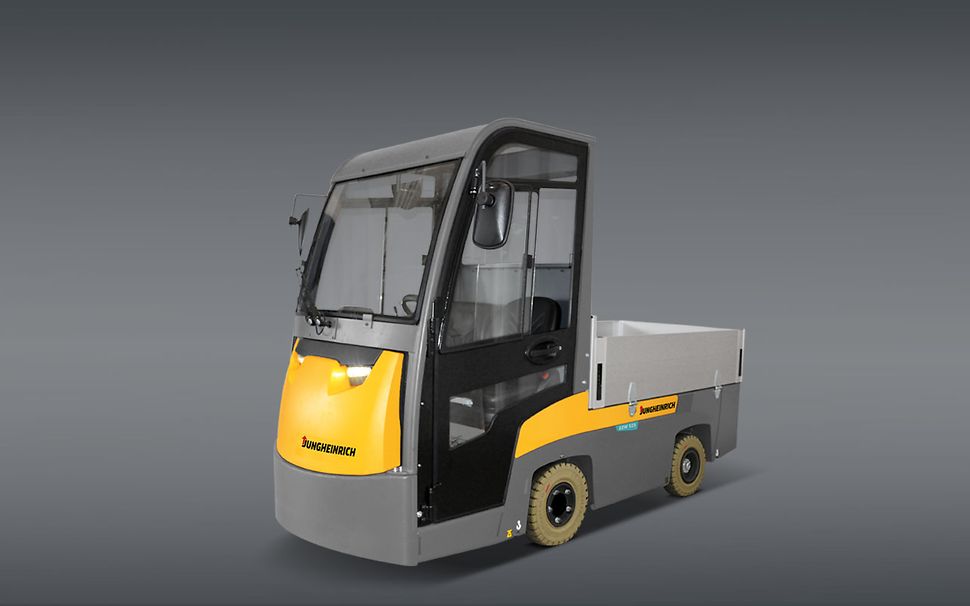

Robust, versatile and economic – these are the advantages of our EZS 515 electric flatbed truck. Whether indoors or outdoors: With a load capacity up to 1.5 t, this heavy-duty, high-performance flatbed truck is suitable for almost every application.

In addition to outstanding travel comfort and safety, the Series 5 tow tractors also offer outstanding performance with low energy consumption.

• Ideal for maintenance, rapid supply of spare parts or as four-wheel tow tractors.
• Able to meet requirements for load gates, tarpaulin top or boxed housings.
• Comfort suspension system: The fully cushioned suspension with springs and shock absorbers on all wheels protects the operator’s back as well as the truck.
• Robust design: The strong steel frame and heavy-duty moulded parts last for the entire service life of the truck even when used day in, day out.
• LED lighting: The optional lighting is environmentally friendly and not sensitive to vibrations.
• Suitable couplings can be attached.
• Spacious operator position: A low footstep and spacious footwell ensure ergonomic operation as well as the arrangement and accessibility of the steering wheel and switches.
• Electro-hydraulic steering enables precise driving with less effort.
• Automatic parking brake with roll-back protection: When the truck comes to a standstill on slopes, it is secured by an automatic parking brake.
• The 48-V, 3-phase AC motor provides powerful acceleration and a high top speed.
• Regenerative braking: The braking energy is fed back into the battery, thereby extending its operating period.

Conclusion: Sophisticated ergonomics and technology in the form of our EZW 515 ensure safe, effortless working combined with cost and energy efficiency.

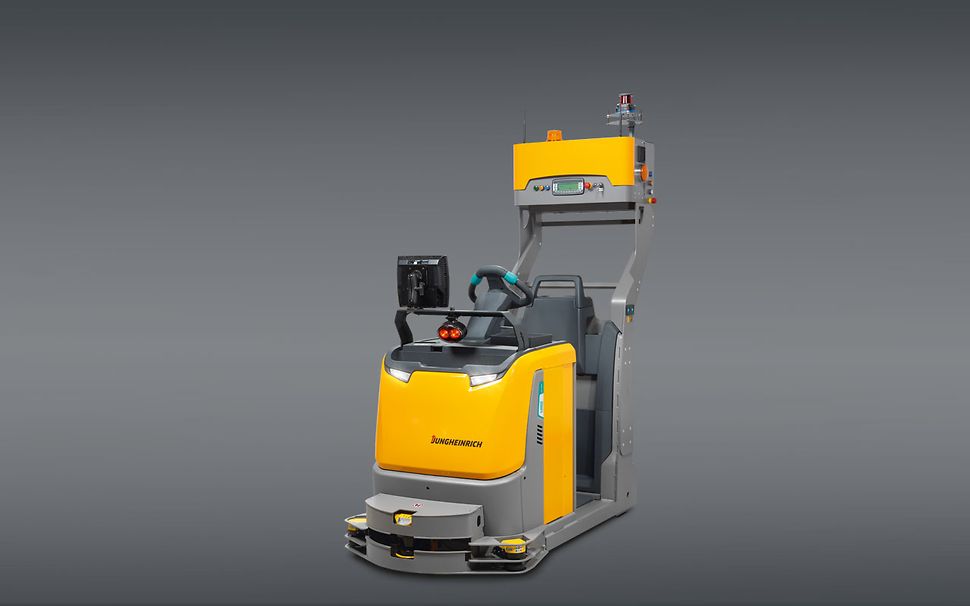

The EZS 350a is an Automated Guided Vehicle based on our standard series truck. It combines proven mechanical engineering with precision navigation technology and an extensive safety system. This ensures the highest possible level of reliability and safety. The EZS 350a can be used in mixed operations mode with manual trucks and pedestrians. Regardless of whether you integrate it in existing factory structures or use it in a new building, the EZS 350a is the perfect choice when it comes to raising the efficiency of your processes.

The EZS 350a uses laser navigation so no floor work is required. Reflectors are attached to suitable objects along the travel route such as racking, columns and walls, natural landmarks can also be used.

Using the EZS 350a will improve your work processes. The automated handling of standardised transport processes, e.g. for production supply, relieves strain on the employees with respect to additional transport tasks and gives them the opportunity to concentrate on their main tasks.

Our AGV system can easily be integrated into the existing IT and software landscape. Our award-winning Jungheinrich Logistics Interface facilitates a smooth connection to a host system, such as the Jungheinrich WMS or other available WMS/ERP systems. However, you can also use your AGV system as a stand-alone system, i.e. as an autonomous system without a host connection.

The modular system structure creates the best conditions for representing individual customer processes as well as reacting flexibly and quickly to process changes. This creates a solid basis for efficient use, according to your requirements.
