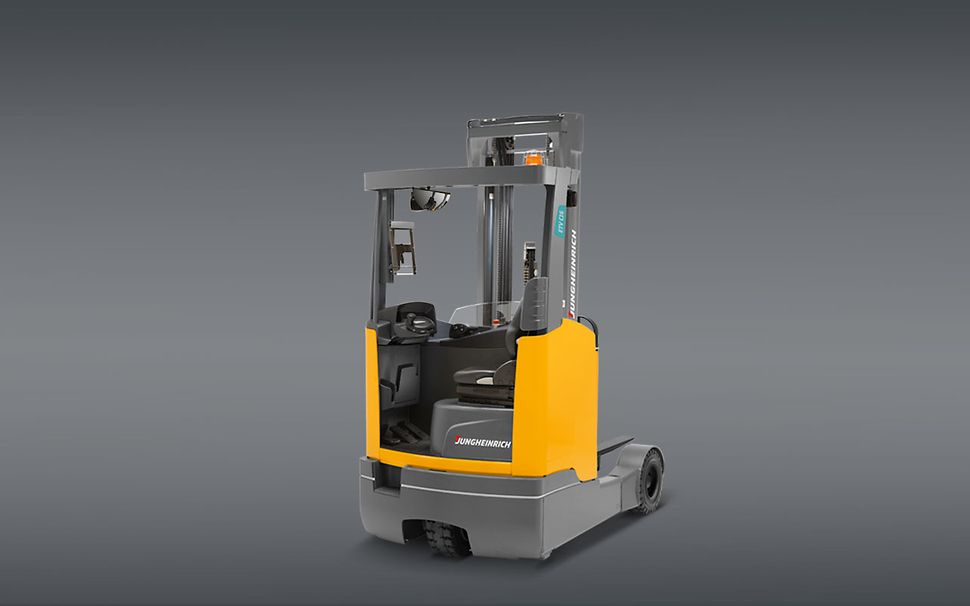

Compact design, high performance figures, innovative technology and optimum ergonomic working conditions – these are the strengths of our Jungheinrich 110/112 reach trucks. Whether for handling pallets or operating in drive-through and drive-in racking, working in extremely narrow areas, low clearances or for single shift or multishift applications: The ETV 110/112 reach trucks offer the right solution for any application.

The main advantages of this series are:

• Space saving with narrow aisle widths from 2664 mm. Thanks to their slim support arms, the ETV 110/112 trucks can pull a Euro pallet back between the support arms, despite their compact outer width of only 1120 mm. This creates more room during operation with oncoming traffic, in block warehouses or in drive-in racking.
• High throughput combined with low energy consumption. This is achieved due to the very latest drive and control technology.

Advanced ergonomics and technology promote productivity:

• Generous cab dimensions and outstanding visibility, both during travel and when stacking and retrieving.
• Automotive layout of the pedals.
• Automatic speed reduction when cornering with curveCONTROL.
• 180° and 360° steering: Operator can chose between minimum turning radius and fast change in travel direction.
• soloPILOT control lever: sensitive stacking even at high lift heights.

The right configuration for your needs: An extensive range of options including a wide variety of assistance systems and battery versions from 310 to 620 Ah ensures the truck can be adapted to suit any application.

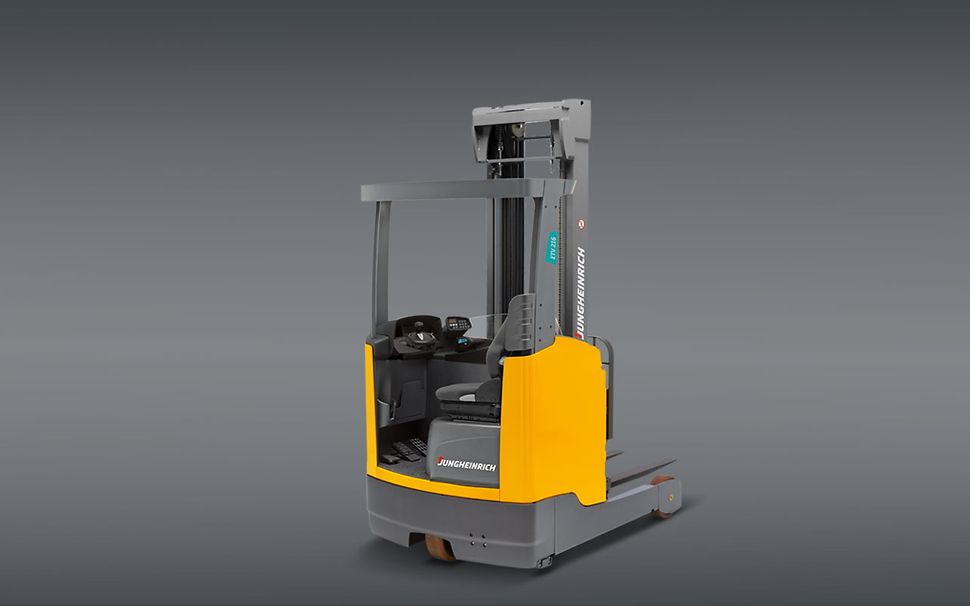

Compact design, high performance figures, innovative technology and optimum ergonomic working conditions. These are the strengths of our ETM/ETV 214/216 reach trucks – whether for handling pallets or operating in drive-through and drive-in racking, whether for extremely narrow areas, low clearances or for single shift or multi-shift applications: The ETM/ETV 214/216 reach trucks offer the right solution for any application.

The main advantages of this series are:

• Space saving with narrow aisle widths from 2711 mm.
• Residual capacities of 1000 kg to more than 10 metres lift height.
• Greater throughput while simultaneously reducing energy consumption. This is achieved due to the very latest drive and control technology.

Advanced ergonomics and technology promote productivity:

• Generously dimensioned cab and outstanding visibility both during travel and when stacking pallets.
• Automotive layout of the pedals.
• Automatic speed reduction when cornering with curveCONTROL.

180° and 360° steering: Operator can chose between minimum turning radius and fast change in travel direction. When travelling straight ahead, the steering wheel spinner knob is always positioned at the ergonomically ideal 9 o’clock position.

The soloPILOT control lever facilitates sensitive stacking even at high lift heights.

The right configuration for your needs: An extensive catalogue of options with a wide variety of assistance systems and battery versions from 465 to 775 Ah ensures the truck can be adapted to suit any application.

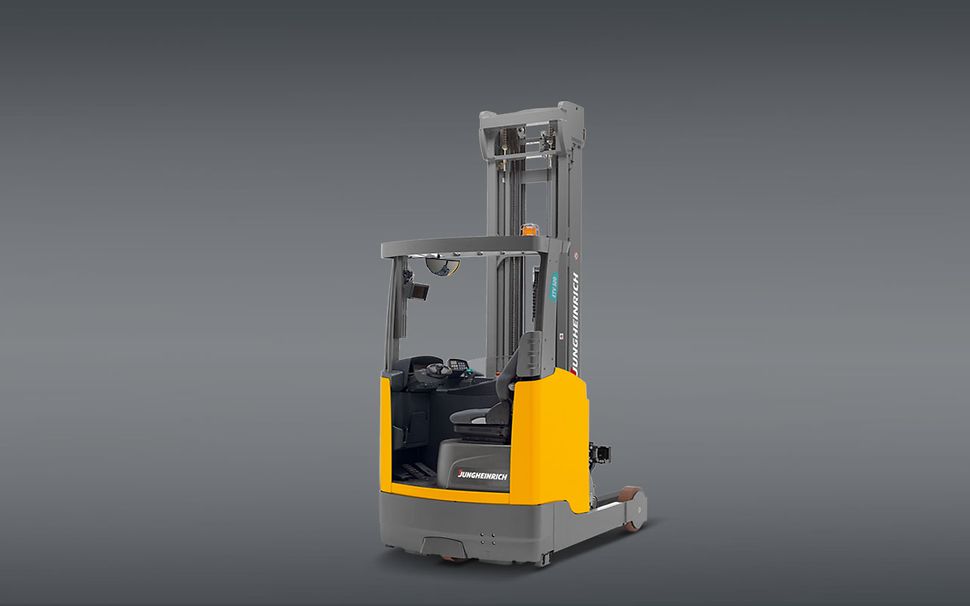

Compact design, high performance figures, innovative technology and optimum ergonomic working conditions, these are the strengths of Jungheinrich reach trucks. Whether they are being used in pallet, drive-through or drive-in racking. Whether for extremely narrow areas or low clearances. Whether for single shift or multishift operation: The Series 3 reach trucks offer the perfect solution for every application.

The main advantages of this series are:

• Space saving with narrow aisle widths from 2790 mm.
• Residual capacities of 1000 kg to 13 m lift height.
• Greater throughput while simultaneously reducing energy consumption. This is achieved due to the very latest drive and control technology.

Advanced ergonomics and technology promote productivity:

• Generously dimensioned cab and outstanding visibility both during travel and when stacking pallets.
• Automotive layout of the pedals.
• Automatic speed reduction when cornering with curveCONTROL.
• 180° and 360° steering: Operator can chose between minimum turning radius and fast change in travel direction. When travelling straight ahead, the steering wheel spinner knob is always positioned at the ergonomically ideal 9 o’clock position.
• soloPILOT control lever: sensitive stacking even at high lift heights.

The right configuration for your needs: An extensive catalogue of options with a wide variety of assistance systems and battery versions, from 560 to 930 Ah ensures the truck can be adapted to suit any application.

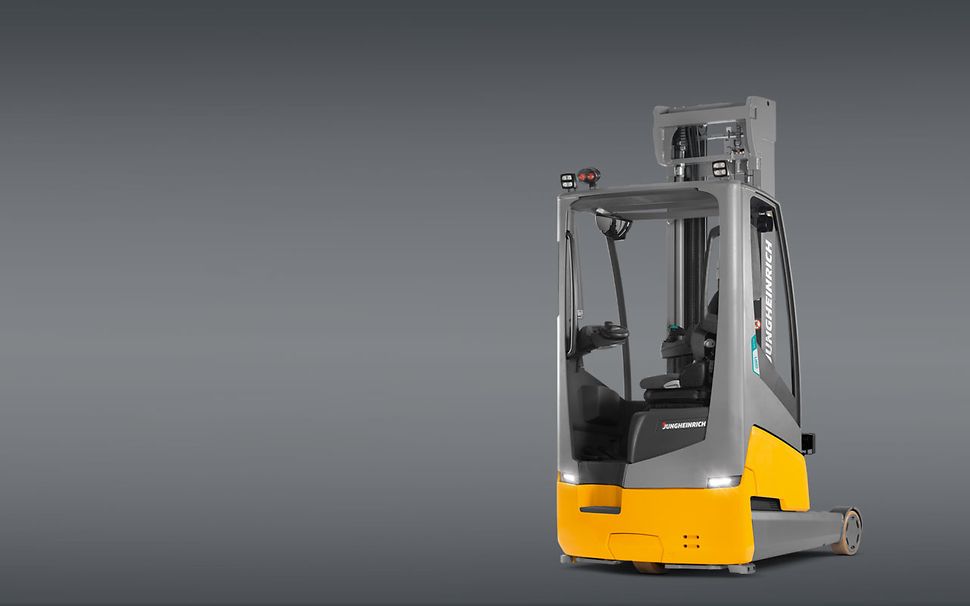

Super-elastic tyres, high ground clearance, space-saving design, high performance figures and optimum ergonomic working conditions – these are the outstanding strengths of our ETV C16 and ETV C20 reach trucks.

The ETV C16 and ETV C20 offer the following advantages:

• For example, our electric reach trucks with superelastic tyres are the ideal transport trucks for combined indoor/outdoor use with different floor types. They will reliably transport your goods, whether on a smooth concrete floor in the warehouse or on a bumpy asphalt surface around the HGV loading dock.
• Space-saving design with narrow working aisle widths from 2829 mm (according to VDI when picking up Euro pallets lengthways).
• High throughput with low energy consumption: Optimum energy efficiency due to perfectly matched motors, controllers and software systems.
• Simple, intuitive handling due to ergonomically configured displays and controls: Not only do the configuration and design of the instrument panel contribute to safety but they also provide excellent visibility.

Our ETV C16 and ETV C20 reach trucks therefore create the best design for cost-effective stacking and retrieval at high lift heights and in confined spaces. Whether working in pallet or drive-through racking systems, in single shift or multi-shift applications, or for frequent outdoor use with the comfortable weatherproof cab (optional) – the ETV C16/C20 reach trucks offer the ideal solution for many special applications.

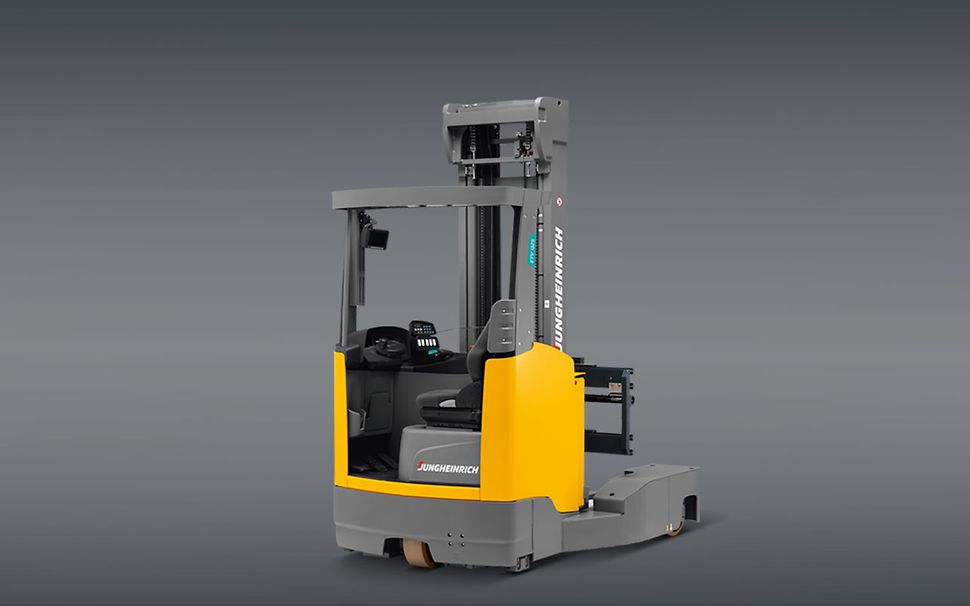

Multi-directional reach trucks are used wherever long loads are transported in narrow aisles and need to be elevated to extreme heights. With electric all-wheel steering, loads up to 8m long can be transported optimising use of available space.

There are 5 steering modes available ranging from enhanced normal travel and turning on the spot, through to transverse and parallel travel. In ‘enhanced normal travel’, the already small turning radius is reduced further by simultaneous load wheel steering. The advantages of 360° steering are also available: Minimum turning radius and rapid direction change. This makes the ETV Q clearly superior to any conventional 4-way reach truck.

Uncomplicated, intuitive handling with ergonomically arranged displays and controls as well as outstanding visibility makes operating the truck simplicity itself. In addition, assistance systems increase productivity:

• Jungheinrich curveCONTROL reduces the maximum travel speed when cornering, depending on the steer angle.
• Weighing systems allow weights to be checked at the press of a button.
• Mast reach cushioning reduces mast sway during stacking and retrieval operations, thereby increasing throughput.

The outstanding performance is complemented by excellent cost-effectiveness:

• More pallet throughput thanks to greater travel and lift performances.
• Long operating times thanks to the reduction in energy consumption with the same throughput.
• Less aisle width required as a result of the proven reach principle.

A number of options and battery versions ranging from 620 Ah to 930 Ah ensure that the trucks can be adapted to any application.

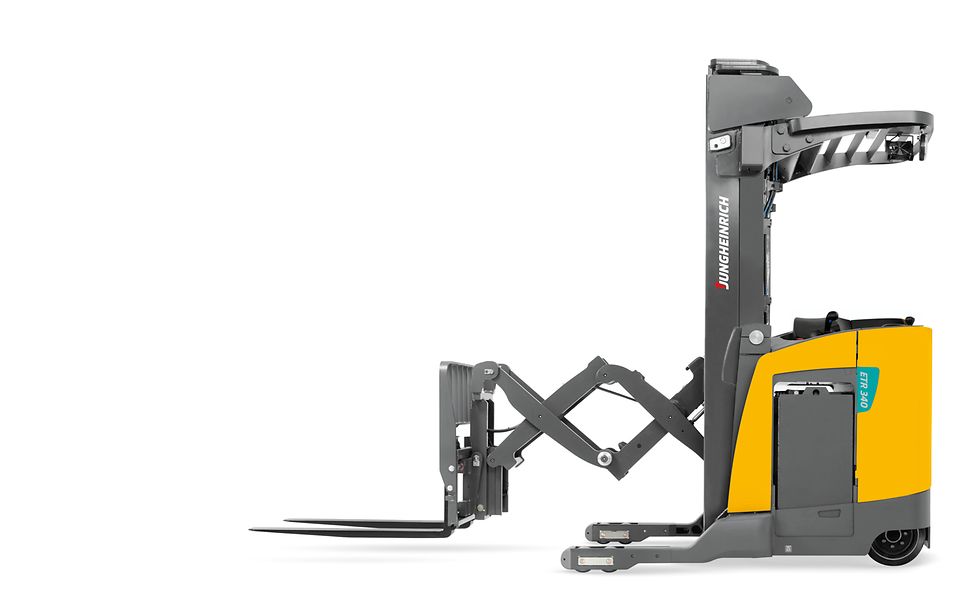

High residual capacity, high performance, an innovative suspension system and superior energy efficiency are only some of the strengths of the new Jungheinrich ETR pantograph reach trucks of series 2 and 3. Whether for handling pallets or operating in drive-through and drive-in racking, whether for extremely narrow areas, low clearances or for single shift or multishift applications: The series 2 and 3 pantograph reach trucks are the perfect solution for every application.

The main advantages:

• For deep (2 pallets depth) reach applications (ETR 335d only) at lift heights of up to 10 m the residual capacity is still at 1.600 kg.
• In addition to a substantial increase in overall stability the newly developed ProTrac suspension system generates a high level of driving safety and comfort, especially in corners and on rough floors. This performance helps to boost the drivers confidence while operating the truck, leading to higher productivity.
• Outstanding material handling throughput is achieved by combining excellent acceleration and the highest lift speeds on the market.
• Options like the fork camera, which allows for safe and efficient load handling at great lift hights, further enhance productivity.
• Remarkable energy efficiency is accomplished by a perfectly balanced setup of all powertrain components as well as the sophisticated Jungheinrich AC technology. This enables operators to run two consecutive shifts on a single battery charge.
• The compact design allows for working aisle widths as narrow as 2.652 mm (ETR 230).
• A wide range of baseleg openings, battery compartments and load wheel configurations facilitate optimum customization of the truck to the specific requirements of each material handling operation. In addition, there are numerous options and assistance systems available so that we are able to offer exactly the right ETR for your individual application!

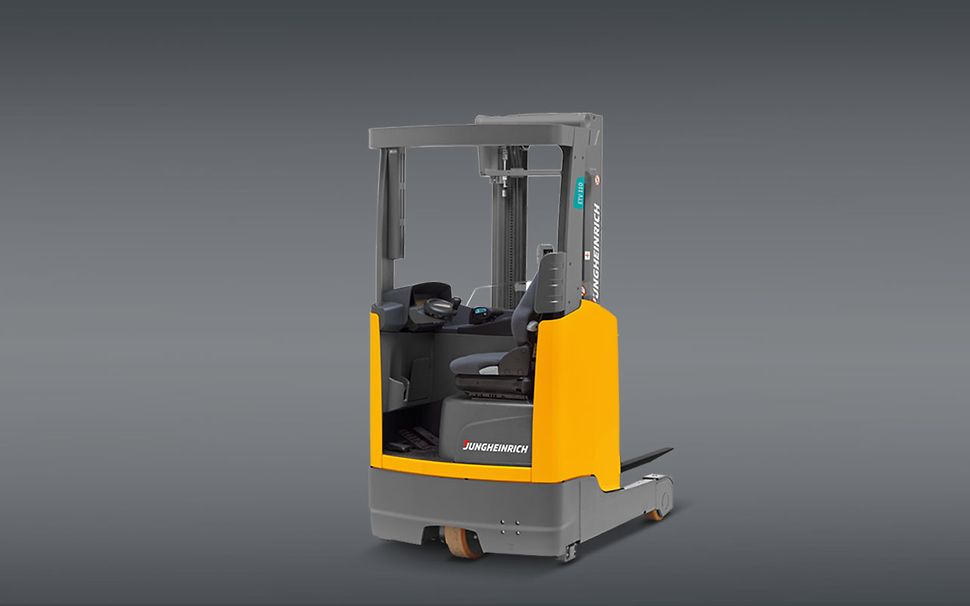

The agile and innovative ETV 216i reach truck is the ideal partner for effective and safe stacking and retrieval operations as well as the provision of pallets for order picking.

The integrated lithium-ion battery, which enables a complete redesign of the truck, is extremely compact, allowing highly flexible use thanks to its boost and interim charging capabilities – even in multi-shift operations (with the drive&liftPLUS performance package). Fast lifting and pushing speeds significantly increase the throughput of pallets compared to conventional reach trucks. In addition, the operator has an ergonomic workstation which offers a spacious cab, optimal all-round visibility and ideal operating conditions.

The innovative construction of the ETV 216i creates the basis for maximum ergonomics and safety. Smart assistance systems such as positionCONTROL or operationCONTROL and a tailor-made operating concept enable fatigue-free, productive operations.
